Dispersion mixer or kneader is a labour & time saving system that offers an output of three times or more compared to an open mixing mill and substantially upgrades the quality by bringing about far superior results in kneading and mixing.
2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about even distribution of the stock.
3. All the parts in contact with stock are ground, plated with hard chrome and polished. The rotor wings are built up by welding with the abrasion-proof sintered carbide to resist abrasion and corrosion.
4. All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process.

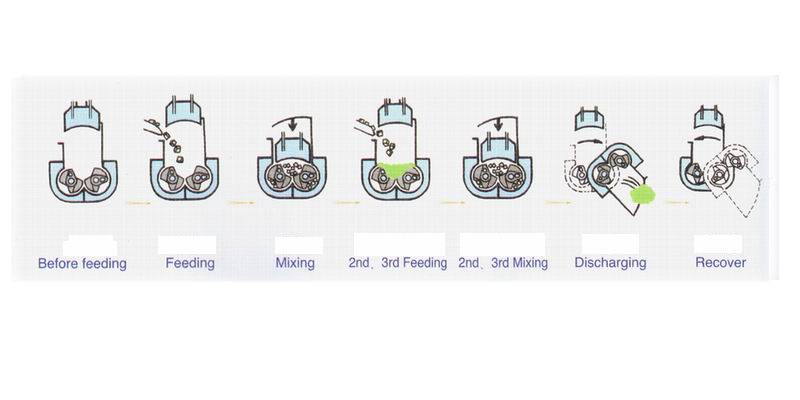

5. Stock is fed through the rear door of the framework (or another port) and discharged by the mixing chamber tilting forward by 140°. Such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock color changing and the mixing chamber cleaning.
|
Model Item |
X(S)N-3 X(S)N-3×32 |
X(S)N- 10×32 |
X(S)N- 20×32 |
X(S)N- 35×30 |
X(S)N- 55×30 |
X(S)N- 75×30 |
X(S)N- 110×30 |
X(S)N- 150×30 |
X(S)N- 200×30 |
X(S)N- 300×30 | ||||
|
Total Volume of Mixing Chamber (L) |
8 |
25 |
45 |
75 |
125 |
180 |
250 |
325 |
440 |
700 | ||||
|
Working Volume of Mixing Chamber (L) |
3 |
10 |
20 |
35 |
55 |
75 |
110 |
150 |
200 |
300 | ||||
|
Driving Motor Power (KW) |
5.5 |
15 |
30 |
55 |
75 |
110 |
185 |
220 |
280 |
280/400 | ||||
|
Tilting Motor Power (KW) |
0.55 |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
7.5 |
7.5 | ||||
|
Tilting Angle |
135 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 | ||||
|
Rotational Speed Of Rotor (Front/Rear) (r/min) |
6~60 32/24.5 |
32/23.5 |
32/25 |
32/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 | ||||
|
Pressure of Compressed Air (MPa) |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 | ||||
|
Capacity of Compressed Air (m3/min) |
≥0.3 |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
≥2.0 |
≥2.0 |
≥2.0 | ||||
|
Pressure of Cooling Water (Rubber Mixing) (MPa) |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 | ||||
|
Pressure of Heating Steam( Plastics Mixing) (MPa) |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 | ||||
|
Overall Dimention (mm) |
L |
1,660 |
2,850 |
2,630 |
3,200 |
3,280 |
3,330 |
3,930 |
4,200 |
5,070 |
| |||
|
W |
960 |
1,300 |
1,520 |
1,900 |
1,930 |
2,620 |
3,000 |
3,300 |
3,500 |
| ||||
|
H |
1,750 |
2,2280 |
2,550 |
2,950 |
3,070 |
3,340 |
3,660 |
3,900 |
4,600 |
| ||||
|
Weight (kg) |
2,000 |
3,300 |
4,500 |
6,500 |
7,800 |
10,500 |
14,500 |
19,500 |
22,500 |
27,500 | ||||
